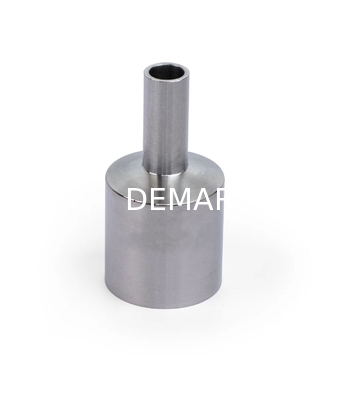

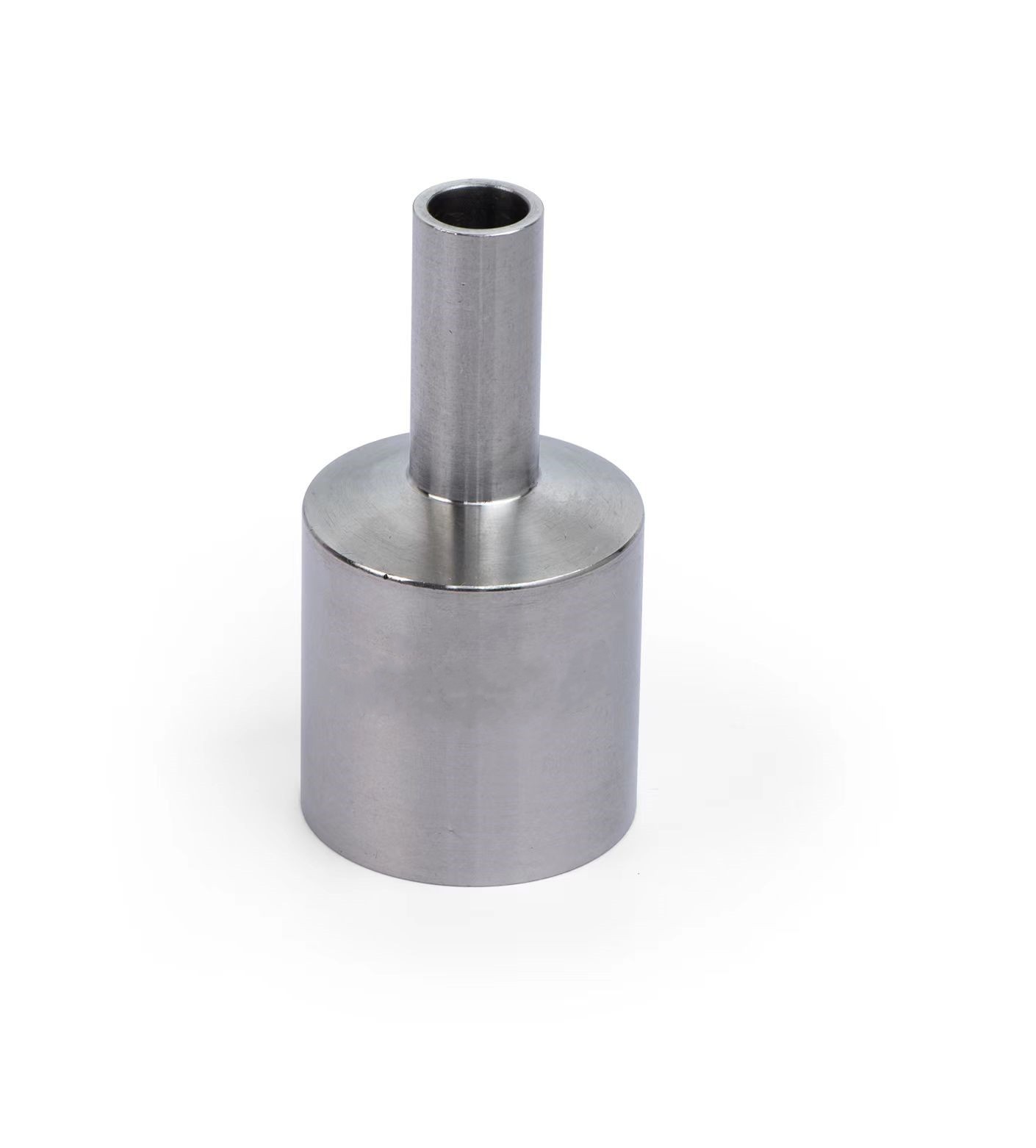

Reducer
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEMAR / OEM |
| Certification | ISO , PED |
| Model Number | 1/4' to 6' |
| Minimum Order Quantity | 1pcs |
| Price | RMB50-300/M |
| Packaging Details | packed in plywood boxes,individual packing of each tube is polyethylene |
| Delivery Time | 10-15 Days |
| Supply Ability | 200pcs / Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304L/316L/C22/C276 |
|---|
Product Description
| Dimensions | ||||||
| Size | O.D. 1(mm) | Wall 1 (mm) | O.D. 2(mm) | Wall 2 (mm) | A (mm) | B (mm) |
| 3/8" x 1/4" | 9.53 | 0.89 | 6.35 | 0.89 | 69.9 | 34.1 |
| 1/2" x 1/4" | 12.7 | 1.24 | 6.35 | 0.89 | 69.9 | 33.4 |
| 1/2" x 3/8" | 12.7 | 1.24 | 9.53 | 0.89 | 69.9 | 34.1 |
| 3/4" x 1/4" | 19.1 | 1.65 | 6.36 | 0.89 | 69.9 | 31.8 |
| 3/4" x 3/8" | 19.1 | 1.65 | 9.53 | 0.89 | 69.9 | 32.5 |
| 3/4" x 1/2" | 19.1 | 1.65 | 12.7 | 1.24 | 69.9 | 33.4 |
| 1" x 3/8" | 25.4 | 1.65 | 9.53 | 0.89 | 76.2 | 34.1 |
| 1" x 1/2" | 25.4 | 1.65 | 12.7 | 1.24 | 76.2 | 34.9 |
| 1" x 3/4" | 25.4 | 1.65 | 19.1 | 1.65 | 76.2 | 36.5 |
| 1 1/2" x 1/2" | 38.1 | 1.65 | 12.7 | 1.24 | 133.4 | 60.3 |
| 1 1/2" x 3/4" | 38.1 | 1.65 | 19.1 | 1.65 | 133.4 | 61.9 |
| 1 1/2" x 1" | 38.1 | 1.65 | 25.4 | 1.65 | 133.4 | 63.5 |
| 2" x 3/4" | 50.8 | 1.65 | 19.1 | 1.65 | 139.7 | 61.9 |
| 2" x 1" | 50.8 | 1.65 | 25.4 | 1.65 | 139.7 | 63.5 |
| 2" x 1 1/2" | 50.8 | 1.65 | 38.1 | 1.65 | 139.7 | 66.7 |
| 2 1/2" x 1" | 63.5 | 1.65 | 25.4 | 1.65 | 146.1 | 63.5 |
| 2 1/2" x 1 1/2" | 63.5 | 1.65 | 38.1 | 1.65 | 146.1 | 66.7 |
| 2 1/2" x 2" | 63.5 | 1.65 | 50.8 | 1.65 | 146.1 | 69.9 |
| 3" x 1 1/2" | 76.2 | 1.65 | 38.1 | 1.65 | 152.4 | 63.5 |
| 3" x 2" | 76.2 | 1.65 | 50.8 | 1.65 | 152.4 | 66.7 |
| 3" x 2 1/2" | 76.2 | 1.65 | 63.5 | 1.65 | 152.4 | 69.9 |
| 4" x 2" | 101.6 | 2.11 | 50.8 | 1.65 | 165.1 | 69.9 |
| 4" x 2 1/2" | 101.6 | 2.11 | 63.5 | 1.65 | 165.1 | 76.2 |
| 4" x 3" | 101.6 | 2.11 | 76.2 | 1.65 | 165.1 | 76.2 |
| 6" x 2 1/2" | 152.4 | 2.11 | 63.5 | 1.65 | 292.1 | 76.2 |
| 6" x 3" | 152.4 | 2.11 | 76.2 | 1.65 | 292.1 | 76.2 |
| 6" x 4" | 152.4 | 2.11 | 101.6 | 2.11 | 292.1 | 76.2 |
