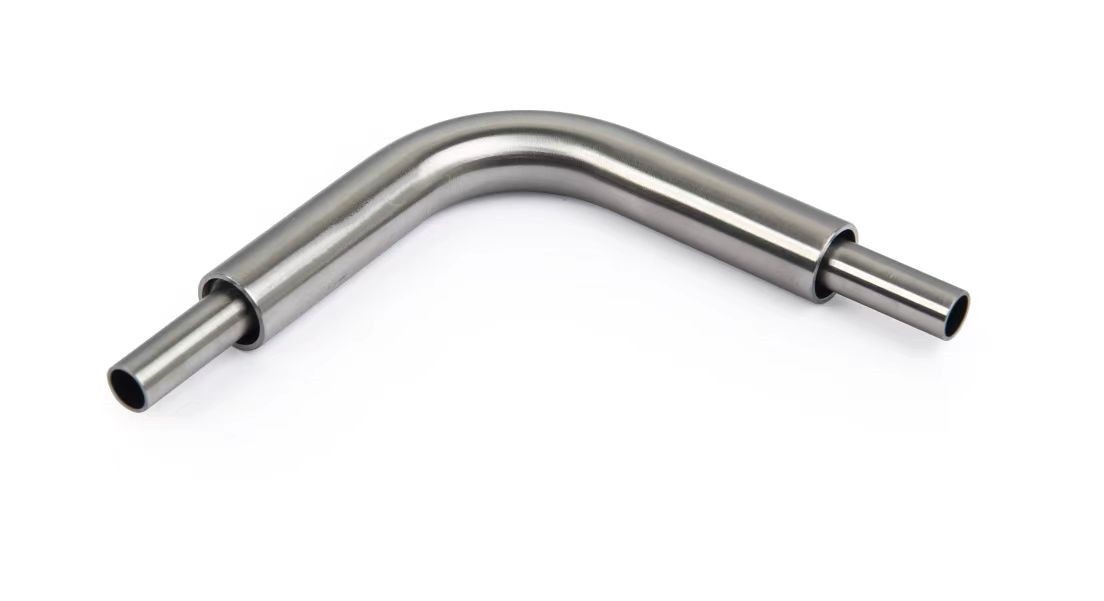

Coaxial 90° Elbow
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEMAR / OEM |
| Certification | ISO , PED |
| Model Number | 1/4' to 2' |
| Minimum Order Quantity | 1pcs |
| Price | RMB50-300/M |
| Packaging Details | packed in plywood boxes,individual packing of each tube is polyethylene |
| Delivery Time | 10-15 Days |
| Supply Ability | 200pcs / Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304L/316L/C22/C276 |
|---|
Product Description
| 90°同轴弯头 Coaxial 90° Elbow | ||||||||
| ASTM Tube | ||||||||
| Dimensions | ||||||||
| Size | Inner Tube | Outer Tube | A (mm) | B (mm) | R (mm) | |||
| O.D. 1(mm) | Wall 1 (mm) | O.D. 2(mm) | Wall 2 (mm) | |||||
| 1/4" | 6.35 | 0.89 | 12.7 | 1.24 | 111.1 | 25.4 | 24.9 | |
| 3/8" | 9.53 | 0.89 | 15.9 | 1.24 | 104.8 | 25.4 | 27.9 | |
| 1/2" | 12.7 | 1.24 | 19.1 | 1.65 | 108.0 | 25.4 | 35.1 | |
| 3/4" | 19.1 | 1.65 | 25.4 | 1.65 | 171.5 | 44.5 | 28.4 | |
| 1" | 25.4 | 1.65 | 31.8 | 1.65 | 181.0 | 44.5 | 38.1 | |
| 1 1/2" | 38.1 | 1.65 | 50.8 | 1.65 | 212.7 | 50.8 | 57.2 | |
| 2" | 50.8 | 1.65 | 63.5 | 1.65 | 228.6 | 50.8 | 76.2 | |
